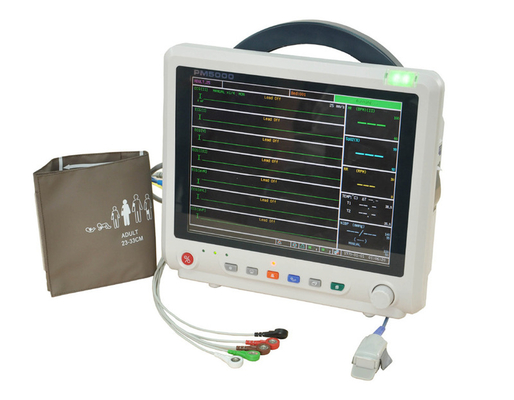

12.1 Inch Animal Hospitals And Clinics / Portable Veterinary Patient Monitor PM5000V Thermal Recorder Veterinary Patient Monitor

Features Description:

This patient monitor is intended to be used in animal hopsitals and pet's clinics.The monitor package includes 5lead electrocardiography (ECG), noninvasive blood pressure (NIBP), pulse oximetry (SpO2), respiration rate (RR) and temperature (TEMP), end-tidal carbon dioxide (ETCO2) and invasive blood pressure (IBP)

Technical Specifications:

1. Parameters:

SPO2, ECG, NIBP, TEMP, RESP, PR, RR. Optional function: ETCO2 and internal printer

2. Power supply

AC power adaptor, AC 85~265V/ 50Hz/60Hz;

Lithium battery.

3. SpO2

Range: 0%-100%.

Accuracy: ±2% at 70-100%;<70%, undefined.

4. Pulse Rate

Range: 30-250bpm.

Accuracy: ±2bpm at 30-250bpm.

5. NIBP

Method: Oscillometry

Modes: Manual/Auto/Comtinuous

Auto measure time: Adjustable

Measurement range: 10-270mmHg

6. ECG

Lead mode:3-lead or 5-lead

Lead selection:I;II;III,avR;avF;V

Heart rate range:Adult:15-300bpm;Pediatric/Neonatal:15-300bpm

ECG waveform:2 channals

Accuracy: ±1 bpm or ±1%,which is greater

S-T segment detection;measurement range: -2.0mv~2.0mv

Alarm:Yes,audible and visual alarm,alarm events review

7. Respiration Rate

Method:RA-LL impedance

Range:Adult:0-120rpm;pediatric/neonatal:0-150rpm

Apnca alarm:Yes

8. Temperature

Range:0-500C

Accuracy: ± 0.10C

Channal:Dual-channel

Standard Package List:

PM5000V Main Uint----------------------1PCS

Veterinary SpO2 Probe------------------1PCS

5-leads ECG Cable----------------------1PCS

Electrodes---------------------------------5PCS

NIBP Cuff for vets------------------------1PCS

NIBP Extension Tube--------------------1PCS

Power Cable------------------------------1PCS

Lithium Battery--------------------------1PCS

User manual ---------------------------1PCS

Optionanl Configuration

Etco2

IBP(Invasive Blood Pressure)

Built-in-Recorder

Trolley

Brace

IPMS8000(Intelligent Patient Management System)

Environment Specification:

Operating Temp.: 0 to 45°c

Storage Temp.: -20 to +60°c

Relative Humidity: 30 to 95%(Operating), 10 to 95%(Storage)

Certifications

Note:

We have another 5 models with different configurations,Please contact us if you need further information for these models !

UTECH CO.,LTD. is specialized in medical equipment in Chongqing, China. It is a global medical technology company that develops and manufactures Pulse Oximeters, Vital Signs Monitors, Patient Monitors, ECG, EKG, Infusion Pump, Syringe Pump and Patient Management System based on the competitive development of electronic industry in China.

Warranty: 2 years

OEM & ODM Service

Online Technical support (Skype, MSN, Wechat, WhatsApp, Viber, QQ, Trademanager)

Remote software update

We Take Care You before & after sales!
