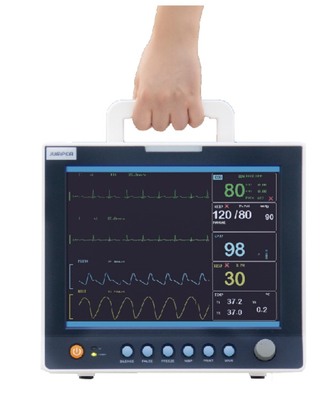

Plastic High Quality CE Approved Hospital Equipment Patient Monitor With Built-in Battery

veterinary, Vet Monitor

CE approved

Feature:

12" color TFT display,

Suitable for adult, pediatric and neonatal patient

Arrhythmia analysis, ST calculation, Pacemaker analysis

Anti-ESU, anti- defibrillator

Can connected to hospital controling system.

Specification:

ECG

Lead mode: 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection: I, II, III, avR, avL, avF, V,

Waveform :2 ch

Lead mode: 3 Leads ( R, L, F or RA, LA, LL)

Lead selection: I, II, III,

Waveform: 1 ch

Gain: X2.5mm/mV, X5.0mm/mV, X10mm/mV, X20mm/mV, auto

Resolution: 1 bpm

Sensitivity: > 200 (uV P-P)

Differential Input Impedance: > 5 MΩ

CMRR

Monitor: > 105 dB

Operation: > 105 dB

Diagnosis: > 85 dB

Electrode offset potential :300mV

Leakage Current: < 10 uA

Baseline Recovery :< 3 S After Defi.

ECG Signal Range: 8 m V ( Vp-p )

Bandwidth

Surgery: 1 ~ 15 Hz

Monitor: 0.5 ~ 35 Hz

Diagnostic: 0.05 ~ 100 Hz

Calibration Signal 1 (mV p-p), Accuracy : ± 5%

Measure and Alarm: -2.0 ~ +2.0 mV

ARR Detecting

Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY,

RON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC

Alarm: Available

RESPARATION

Method: Impedance between R-F(RA-LL)

Differential Input Impedance: >2.5 MΩ

Measuring Impedance Range: 0.3~5.0Ω

Base line Impedance Range: 0 ~ 2.5 KΩ

Bandwidth: 0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult: 0 ~ 120 rpm

Neo/Ped: 0 ~ 150 rpm

Resolution: 1 rpm

Accuracy: 2 rpm

Apean Alarm: 10 ~ 40 s

NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in AUTO Mode:1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STATMode: 5 Min

Pulse Rate Range: 40 ~ 240 bpm

Alarm Type: SYS, DIA, MEAN

Measuring and alarm range

Adult Mode:

DIA:10 ~ 215 mmHg

MEAN: 20 ~ 235 mmHg

Pediatric Mode

SYS: 40 ~ 200 mmHg

DIA: 10 ~ 150 mmHg

MEAN: 20 ~ 165 mmHg

Neonatal Mode

SYS: 40 ~ 135 mmHg

DIA: 10 ~ 100 mmHg

MEAN: 20 ~ 110 mmHg

Resolution Pressure :1mmHg

Accuracy Pressure Maximum Mean error: ±5mmHg

Maximum Standard deviation: ± 8mmHg

Overpressure Protection

Adult Mode:297 ± 3 mmHg

Pediatric Mode:240 ± 3 mmHg

Neonatal Mode:147 ± mmHg

SpO2

Measuring Range: 0 ~ 100 %Alarm Range: 0 ~ 100 %

Resolution: 1 %

Accuracy:70% ~ 100% ± 2 % 0% ~ 69% unspecified

Actualization interval: about 1 Sec.

Alarm Delay: 10 Sec.

Pulse Rate

Measuring and Alarm Range:0~254bpm

Resolution:1bpm

Accuracy :± 2bpm

TEMPERATURE

Channel 2

Measuring and Alarm Range: 0 ~ 50 C

Resolution: 0.1 C

Accuracy : 0.1 C

Actualization interval:about 1 Sec.

Average Time Constant: < 10 Sec.

IBP(Optional)

Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and alarm range

ART:0 ~ 300 mmHg

PA:-6 ~ 120 mmHg

CVP/RAP/LAP/ICP: -10 ~ 40 mmHg

P1/P2: -10 ~ 300 mmHg

Press Sensor

Sensitivity :5 uV/V/mmHg

Impedance: 300-3000Ω

Resolution: 1 mmHg

Accuracy : ± 2% or 1mmHg, which great

Actualization interval: about 1 Sec.

ETCO₂(Optional)

Measure range: 0% - 13%

Resolution: 1 mmHg

Accuracy : ±2 mmHg (< 5.0% Measurement Value)

±10%( > 5% Measurement Value)

Response Time: 180ms
