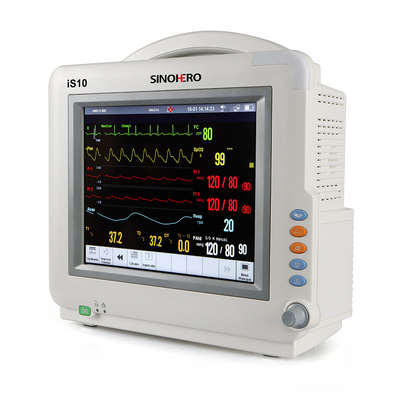

iS10 Devices First Aid Modular Multipara Patient Portable ICU Monitor Patient Monitor For Pediatric And Adults

1 Piece
MOQ
$1,699.00(1 - 49 Pieces) $1,630.00(50 - 99 Pieces) $1,550.00(100 - 499 Pieces) $1,450.00(>=500 Pieces)
Precio
iS10 Devices First Aid Modular Multipara Patient Portable ICU Monitor Patient Monitor For Pediatric And Adults
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: iS10
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Type: Medical equipment Modular Patient Monitor
Model: Medical science Multi-parameter patient monitor
Display: 10.4" Color TFT-LED Anti-dazzling TFT-LCD
Certificate: CE ISO
Standard parameters: ETCO2, ECG, SpO2 , NIBP, RESP, 2-Temp, PR
Function: First-Aid Devices, Examination Therapy Equipments
ECG: 3 Leads /5 Leads/12 Leads
10.4" Color TFT-LED: 10.4" Color TFT-LED
Safety: IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Nellcor-SpO2 Measurement Range: 0~100%
Información básica
Certificación: ce, CE ISO
Model Number: iS10, Medical science Multi-parameter patient monitor
Pago y Envío Términos
Packaging Details: Standard Accessories: 1X iS10 10.4" TFT-LCD Display Monitor 2X Standard Module Slot 1X RJ45 Ethernet Socket 1X Defibrillation Output 1X Nurse Call Socket 1X VGA Port 2X USB1. 1 Port 1X Lithium Rechargeable Battery
Supply Ability: 100 Unit/Units per Month
Descripción de producto
Product Description
Icu Operating Room Multiparameter Patient Monitor Emergency Equipments Medical Cardiac Defibrillator With Vital Sign Monitor
● Introduction:
iS10 is a High Acuity 10.4" Multi-Parameter Modular Patient Monitor, which can offer multiple parameter modules to choose from, adapting to the flexible parameter combination requirements in high acuity applications.
With its plug-and-play modules, our modular patient monitor is able to monitor a wide range of parameters simultaneously, such as ECG, RESP, SpO2, NIBP, 2 TEMP, IBP, EtCO2, BIS, EEG, CO, ICG, AG etc adapting from critical cares to anesthesia monitoring.
Application: It suitable for bedside, operation room, ICU, CCU etc.


● Feature:
iS10 (10.4" TFT) Modular Patient Monitor
10.4" LCD Full Touch Screen selectable
High-end parameter modules of M series seamlessly compatible with iS series
With flexibility and freedom to re-configure major monitoring parameters
High-end parameters:Sun Tech NIBP,CO,EtCO2,AG
Exceptional connectivity by high-speed wire or wireless networking
Powerful 168 hours of trend review with 24 hours of full disclosure

Standard Configuration:
3/5 Lead ECG,HR,Resp,NIBP,SpO2,PR,2-Temp
Main Unit:iS10 Express:12.1" TFT-LCD Display,2 standard Module slot,Touch Screen,1 RJ45 Ethernet Socket,1 Defibrillation Output,1
Nurse Call Socket,1 VGA Port,2 USB 1.1 Port,1 Lithium Rechargeable Battery

Option:
Option Module:Sidesteam EtCO2 Module,MicroStream EtCO2 Module,MainStream EtCO2 Module,AG Module,C.O. Module,IBP Module,Temp
Module,Nellcor SpO2 Module,Masino SpO2 Module,SunTech NIBP module
Printing:3 Channel Thermal Recorder
Mounting:Rolling Stand,Wall Mount
Battery:11.1V/4.0AH Rechargeable Lithium Battery
Other Options:External Display,Wireless Lan,Extensive Memory Card ,Analog Output(ECG or IBP)

EMS/MMS Module List:
NO. RESP 2-TEMP NIBP SpO2 Nellcor SpO2 Masimo SpO2 3/5 lead ECG 12 lead ECG 2-IBP
EMS/MMS1 √ √ √ √ √ √
EMS/MMS2 √ √ √ √ √ √
EMS/MMS3 √ √ √ √ √
EMS/MMS4 √ √ √ √ √
EMS/MMS5 √ √ √ √ √ √
EMS/MMS6 √ √ √ √ √ √
EMS/MMS7 √ √ √ √ √
EMS/MMS8 √ √ √ √ √
EMS/MMS9 √ √ √ √ √ √
EMS/MMS10 √ √ √ √ √ √
EMS/MMS11 √ √ √ √ √
EMS/MMS12 √ √ √ √ √
Product name
iS10 (10.4" TFT) Modular Patient Monitor
Display Resolution
800*600 pixels
Place of Origin
China
Brand Name
SINOHERO
Power Source
Electricity
After-sale Service
Online technical support
Material
ABS
Quality Certification
CE ISO
Instrument classification
Class II
Safety standard
EN 149 -2001+A1-2009
Display
15" TFT anti-dazzling High Resolution Display
Standard Parameters
ECG, RESP, SpO2, NIBP, and Dual- channel TEMP
Optional Parameters
Sidesteam EtCO2 Module,MicroStream EtCO2 Module,MainStream EtCO2 Module,AG Module,C.O. Module,IBP Module,Temp Module,Nellcor SpO2
Module,Masino SpO2 Module,SunTech NIBP module
Type
Operation room ICU CUU patient monitor
Power Input
less than 150VA
Power Voltage
AC 100-240V 50/60Hz
Accuracy
HR±2bpm
Safety class
Category I

● Performance:

Technical Specifications of iS10:

Power supply
Power Voltage: AC 100-240V 50/60Hz
Input Current: 1.1~0.5V
Safety class: Category I

Display
iS10 :10.4" Color TFT-LCD
Resolution: 800×600 pixels

Battery
Type: Rechargeable Lithium battery,11.1V/4.0AH
Operating time under the normal use and full charge:=>210minutes

Recorder (Option)
Method: Thermal dot array
Paper width: 50mm(1.97 in)
Paper length: 15m
Paper Speed: 12.5/25/50(mm/sec)
Traces: Maximum 3 tracks
Recording way: Real-time recording, Periodic recording, Alarm recording

Alarm
Level: Low, medium and high
Indication: Auditory and visual
Patient Physiological Alarm Light color: Yellow & Red
Equipment Technical Alarm Light color: Blue
Supports Pitch Tone and multi-level volume
Supports custom arrhythmia tone

Input device
Touch screen: Standard config
Knob: Standard config
Mouse input: Support
Keyboard input: Support

System Output & Extensible Interfaces
Ethernet Network: 1 Standard RJ45 socket
Defibrillation Output: 1 BNC connector
Nurse Call: 1 RJ11 connector
Video Output: 1VGA port
USB1.1 port: 2
SD memory card: 4Gb (Option)
Analog Output(ECG or IBP): Option

Trend & Reviewing
Trend: Long trend: 168h, minimum resolution is 1min
(Store when power goes off)
High resolution trend: 2h, minimum resolution is 5s
NIBP measurement reviewing: 1000 groups
ARR event: 128 groups of ARR event and the associated waveform
Alarm events: 128 groups of parameter alarm events and associated parameter
waveform at the alarm moment
Full Disclosure waveform: 24 hours for 3 waveforms(with 4Gb SD card)

Safety:
IEC60601-1 Approved, CE marking according to MDD93/42/EEC

ECG
Lead Mode: 3-leads ECG input
5-leads ECG input
12-leads ECG input
Lead selection:Ⅰ,Ⅱ,Ⅲ
Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V-
Ⅰ,Ⅱ,Ⅲ, aVR,aVL,aVF,V1~V6(option)
Gain: 2.5mm/mV(×0.25), 5mm/mV(×0.5), 10mm/mV(×1),
20mm/mV(×2), 40mm/mV(×4),Auto
RR: Monitor mode>=105dB
Surgery mode=< 105dB
Diagnostic mode>= 90dB
Frequency response(-3d B):
Monitor mode 0.5~40Hz
Surgery mode 1~25Hz
Diagnostic mode 0.05~150Hz
Input impedance:>= 5.0Mohm
ECG signal range: ±10.0mV
Electrode offset potential: ±500mV
Patient Leakage Current: <10uA
Standardizing signal: 1mV±5%
Baseline recovery: <5s after Defibrillation. (Mon or Surg mode)
Indication of electrode separation: Every electrode(exclusive of RL)
Protection: Breakdown Voltage 4000VAC 50/60Hz; defibrillator proof
Sweep speed: 12.5mm/s, 25mm/s, 50mm/s

HR
Range: Adult 10~300bpm
Pediatric & Neonate: 10~350bpm
Refreshing time: =< 50 bpm Per2 pulses
50~120bpm per 4 pulses
>= 120bpm per 6 pulses
Resolution: 1bpm
Accuracy: ±1% or ±1bpm,whichever is greater

ST segment
Measurement range: -2.0mV~2.0mV
Accuracy: -0.8mV~0.8mV: ±0.02mV or ±10% whichever is greater
Over ±0.8mV: unspecified
Resolution: 0.01mV

RESP
Method: Thoracic impedance
Lead Selected from:Ⅰ(RA-LA) orⅡ(RA-LL); Default:Ⅰ
Gain: ×0.25, ×1, ×2, ×4
Bandwidth: 0.25Hz to 2.0Hz (-3dB)
Sweep Speed: 6.25mm/s,12.5mm/s,25mm/s

Measurement Range: 0~150 rpm
Resolution: 1rpm
Accuracy: ±2rpm or 2% whichever is greater
Delay of Apnea Alarm: 10s,15s,25s,30s,35s,40s,45s,50s,55s,60s

NIBP
Way of measurement: Automatic Oscillometry
Range of measurement:
Adult: SYS 30~270mmHg
DIA 10~220mmHg
MAP 20~235mmHg
Child: SYS 30~235mmHg
DIA 10~220mmHg
MAP 20~225mmHg

Neonate: SYS 30~135mmHg
DIA 10~100mmHg
MAP 20~125mmHg
Cuff pressure range: 0~300mmHg
Resolution: 1mmHg
Pressure Accuracy: Static: ±2% or ±3mmHg,whichecer is greater
Clinical: ±5mmHg average error
Standard deviation: =< 8mmHg
Unit: mmHg, kPa
Measurement mode: Manual, Auto, STAT
Intervals for AUTO measurement time: 1,2,3,4,5,10,15,30,60,90 minutes;
2, 4, 8, 12 hours
STAT mode cycle time: Keep 5 minutes, at 5 seconds interval.
Overpressure Protection: Hardware and software double protections
Pulse rate range: 40~240bpm

Standard SpO2(Digital)
Measurement Range: 0~100%
Resolution: 1%
Accuracy: At70~100%,±2%
At0~69%, unspecified

PR
Measurement Range: 25~255bpm
Resolution: 1bpm
Accuracy: ±1% or ±1bpm,whichever is greater

Nellcor-SpO2 (Option)
Measurement Range: 0~100%
Resolution: 1%
Accuracy: At70~100%:±2%(Adult)
At70~100%:±3%(Neonate)
At70~100%: ±2%(Low Perfusion)
At0~69%, unspecified
PR
Measurement Range: 20~300bpm
Resolution: 1bpm
Accuracy: 20bpm to 250bpm: ±3bpm
251bpm to 300bpm: unspecified

Masimo-SpO2 (Option)
Measurement Range: 0% to 100%
Resolution: 1%
Accuracy: 70% to 100%: ±2%(adult/pediatric,non-motion conditions)
70% to 100%: ±3%(neonate,non-motion conditions)
70% to 100%: ±3%(motion conditions)
0% to 69%, unspecified
Average time: 2-4s,4-6s,8s,10s,12s,14s,16s

PR
Measurement Range: 25bpm to 240bpm
Accuracy: ±3bpm(non-motion conditions)
±5bpm
Recommend Products

NEC8

Finger Pulse Oximeter
· Integrated with SpO2 probe and processing display module · Small in volume, light in weight and convenient in carrying · Operation of the product is simple, low power consumption · SpO2 value display · Pulse rate value display, bar graph display · Pulse waveform display · The display mode can be changed

SE1208

12-Channel ECG Machine * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

JRT200

Thermometer
* LCD display
* Adopts the latest infrared technology
* Non-contact design
* High temp alarm
* Double mode, can be used to measure the temperature of human body and object surface.
* Just 1 second can measure out the body temperature,Fast & accurate reading within 1 second.
Packing & Delivery
Physical Identity: Size and Weight
Size: 318mm×264mm×152mm
Weight: =< 4.5kg
Standard module slot: 2

Working Environment:
Operating temperature: 0℃~+40℃
Storage temperature: -20℃~+50℃
Operating humisity: 15% to 85% non condensing
Storage humidity : 10% to 93% non condensing
Operating atmospheric pressure: 860hPa to 1060hPa
Storage atmospheric pressure: 500hPa to 1060hPa
Certification： IEC60601-1 Approved, CE marking according to MDD93/42/EEC Package included: 1X iS10 10.4" TFT-LCD Display Monitor
2X Standard Module Slot
1X RJ45 Ethernet Socket
1X Defibrillation Output
1X Nurse Call Socket
1X VGA Port
2X USB1. 1 Port
1X Lithium Rechargeable Battery

Company Profile
Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are firmly committed to excellence of professional service, product quality and striving for maximal mutual win-win partnership. Sino-Hero has and will continue to put on a great deal of efforts to work towards utmost success mutually with our partners. We are customer-centric and dedicated and want to and work towards being right choice to our worldwide distributors. With years of endless efforts, we have enjoyed growth and continuous success in the international market.

SINOHERO's excellent advantages for our valuable international distributors, including: - To offer the most competitive offer to our distributors, not only the best price in the market, but also the most cost-effective products with high quality and reliability - Excellent distribution opportunity to all major markets now is available, we are committed to give our valuable distributors maximal market protection and grow together - Most responsive and efficient service support to your distributors, we offer extended warranty policy on our products, you will enjoy peace of mind - More new products will be in the market and available for our distributors in the following days.

SINO-HERO business activities focus on product lines below:
1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward
2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe
3) ECG machine and its accessories
4) Infusion pump and Syringe Pump system
5) Obstetrical product: Fetal Doppler, Colposcope
6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System
7) A wide range of compatible ultrasound probes and repairable ultrasound probes.

Thank you for your trust and support, we will continue to provide you with quality productand service sinserely.

Certifications
FAQ
1.Who we are? Where we are from? Where we service?
We are Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100 country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total about 11-50 people in our office. 2.What we have?How can we guarantee quality?
We are professional in medical more than 16 Years,We have TUV CE a& ISO13485 Certifications for our products. All of our items Always a pre-production sample before mass production; All items get 100% checking before in our stock; Always final Inspection before shipment. 3.What items we could provide for you? SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5) Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7) A wide range of compatible ultrasound probes and repairable ultrasound probes. 4. Why should you buy from us not from other suppliers? SINHERO’s products are installed in over 50 countries, including US, UK, Germany, France, Italy, Spain, etc. and the percentage of total sales from Europe has been growing fast. The main competitive advantages of SINOHERO’s products: a. quality b. functionality c. easy maintenance and easy to operate d. spare parts and consumables at low cost e. on-time delivery f. strong after sales technical support 5. What services we Can provide for you? We could provide items with Ready to ship,we also could do OEM,ODM orders,we also welcome you to be our Brand Sinohero Agent to work together with us; Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery； Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow; Language Spoken: English,Chinese,Spanish,German,French,Russian
Contect us
Productos recomendados
Póngase en contacto con nosotros
Persona de Contacto : Maggie
Caracteres restantes(20/3000)
Ponerse en contacto
Planta 6, edificio 15, número 987, Jardín Olímpico ChuLeng, Ningbo, Zhejiang, China
Sobre
Perfil de la empresa Visita a la fábrica Control de Calidad Contacto
Productos
Monitoreo de pacientes con varios parámetrosMonitoreo del paciente de la UCImonitor paciente veterinario Todas las categorías
Envíenos un correo
Háganos saber su requerimiento. Conectaremos los mejores productos contigo.
Mapa del Sitio │ Sitio movil │ Política de privacidad
China Bueno Calidad Monitoreo de pacientes con varios parámetros Proveedor. © 2022 - 2024 patientsmonitors.com. All Rights Reserved.
